Create Your Own Computer Vision Sandbox

# for results (maximum of 50 per request)
API_KEY = "{{API KEY}}"
MAX_RESULTS = 250
GROUP_SIZE = 50

python ./bing_image_scraper.py  --query "{{TERM}}" --output {{DIR}}

#A sereis of operations that were selected to apply to images to create a greater amount of image variation
datagen = ImageDataGenerator(
        rotation_range=40,
        width_shift_range=0.2,
        height_shift_range=0.2,
        rescale=1./255,
        shear_range=0.2,
        zoom_range=0.2,
        horizontal_flip=True,
        fill_mode='nearest')#root directory for data augmentation
rootdir = '/xxx/data/'

#Move through the designated root directory and traverse through the individual files inside
for subdir, dirs, files in os.walk(rootdir):
    print("working in " +subdir)
    #Iterate over only the compatible image files
    for file in files:
        if file.endswith(".jpg") or file.endswith(".jpeg") or file.endswith(".png"):
            #Loading the image
            img = load_img(subdir + "/" + file)
            #The Numpy array responsible for shape adhearance
            x = img_to_array(img)
            x = x.reshape((1,) + x.shape)            # the .flow() command below generates batches of randomly transformed images
            # and saves the results to the `preview/` directory
            i = 0
            for batch in datagen.flow(x, batch_size=1,
                                      save_to_dir= subdir + "/", save_prefix='DA', save_format='jpg'):
                i += 1
                #Set to desired iterations
                if i > 3:
                    #Setting bound to break loop so to avoid indefinite run
                    break

#The number of class labels == total number of categories which == length of the folders in .dir
data=load_files(dataDir, load_content= False)
total_categories=len(data.category_names)# input image dimensions
img_rows, img_cols = 64, 64
dataDir= '{{INPUT YOUR TOP LEVEL IMAGE DIR}}'#The function responsible for connecting the image data with the categories created
def build_data(data):
    X = []
    y = []
    #Operations to assign the categories to data structures
    encoder = LabelBinarizer()
    encoded_dict=dict()
    hotcoded_label = encoder.fit_transform(data.category_names)
    #Matching the category target names to the labels
    for i in range(len(data.category_names)):
        encoded_dict[data.category_names[i]]=hotcoded_label[i]
    for country in os.listdir(dataDir):
        label=encoded_dict[country]
        #labeling the images
        for each_flag in os.listdir(dataDir+'/'+country):
            actual_path = os.path.join(dataDir,country,each_flag)
            img_data = cv2.imread(actual_path)
            img_data = cv2.resize(img_data, (img_rows, img_cols))
            X.append(np.array(img_data))
            y.append(label)
    #Creating a test and training set split with space for declaed variables
    X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.1, random_state=36)
    X_train = np.asarray(X_train)
    X_test = np.asarray(X_test)
    y_train = np.asarray(y_train)
    y_test = np.asarray(y_test)#returns the training and testing set
    return [X_train, X_test, y_train, y_test]

#epochs = number of passes through entire training set
epochs = 100def create_model(input_shape,classes):
    #Takes the specifications of the image inputted
    img_input = Input(shape=input_shape)

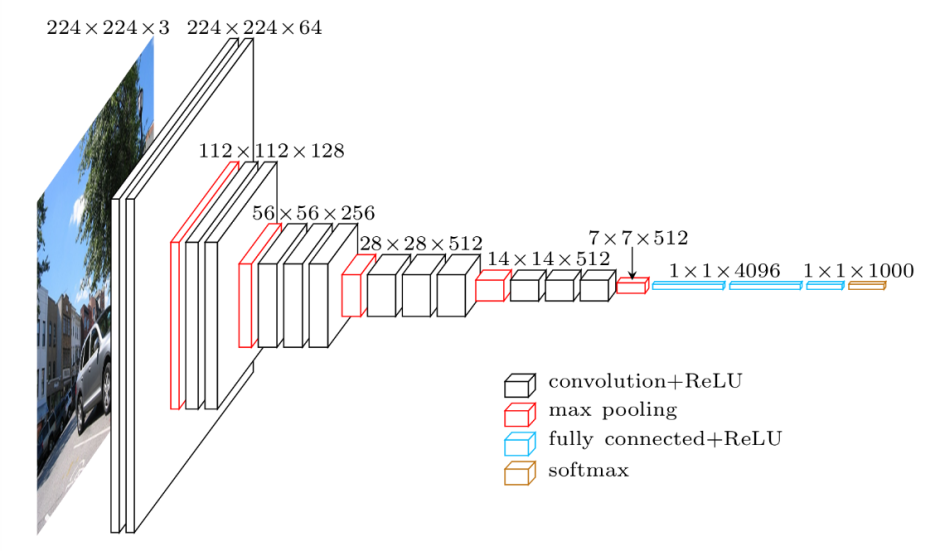

    #The following is an architecture structuring
    x = Conv2D(64, (3, 3), activation='relu', padding='same', name='block1_conv1')(img_input)x = MaxPooling2D((2, 2), strides=(2, 2), name='block1_pool')(x)
    x = Conv2D(128, (3, 3), activation='relu', padding='same', name='block2_conv1')(x)

    x = MaxPooling2D((2, 2), strides=(2, 2), name='block2_pool')(x)
    x = Conv2D(256, (3, 3), activation='relu', padding='same', name='block3_conv1')(x)

    x = MaxPooling2D((2, 2), strides=(2, 2), name='block3_pool')(x)
    x = Conv2D(64, (3, 3), activation='relu', padding='same', name='block4_conv1')(x)

    x = MaxPooling2D((2, 2), strides=(2, 2), name='block4_pool')(x)
    x = Conv2D(128, (3, 3), activation='relu', padding='same', name='block5_conv1')(x)

    x = MaxPooling2D((2, 2), strides=(2, 2), name='block5_pool')(x)

    x = Flatten(name='flatten')(x)
    x = Dense(512, activation='relu', name='fc1')(x)
    x = Dropout(0.2)(x)
    x = Dense(256, activation='relu', name='fc2')(x)
    x = Dropout(0.2)(x)
    x = Dense(classes, activation='softmax', name='final_output')(x)model = Model(img_input, x, name='flag')
    return model

def train_model(x_train, x_test, y_train, y_test):
    input_shape=(img_rows,img_cols,3)
    model=create_model(input_shape,total_countries)
    adams=optimizers.Adam(lr=1e-4)
    model.compile(loss=’categorical_crossentropy’,
                optimizer= adams,
                metrics=[‘accuracy’])
    model.fit(x = x_train, y = y_train, epochs=epochs)
    score = model.evaluate(x_test, y_test, verbose=1)
    print(‘Test loss:’, score[0])
    print(‘Test accuracy:’, score[1])
    model.save(‘flagFinder.model’)
    return model

def flag_identify(positiveDir):    #An array to keep the list of countries built from the data ingestion step
    countries = []    #iterate through the ingestion stage names and append them to a list for ease of labeling
    for i in range(len(datas.target_names)):
        i += 1
        countries.append(datas.target_names[i-1])    #Another data preperation step for image ingestion for prediction identification
    def prepare(filepath):
        IMG_SIZE = 64
        img_array = cv2.imread(filepath)
        new_array = cv2.resize(img_array, (IMG_SIZE, IMG_SIZE))
        return new_array.reshape(-1, IMG_SIZE, IMG_SIZE, 3)    #Load in the previously built model
    model = tf.keras.models.load_model("flagFinder.model")    #Traverses through the given directory containing test images
    for filename in os.listdir(positiveDir):
        #Accpets various photo formats that were processed previous
        if filename.endswith(".jpg") or filename.endswith(".jpeg") or filename.endswith(".png"):
            prediction = model.predict([prepare(positiveDir + filename)])
            topCountry = int(np.argmax(prediction, axis=1))
            secondCountry = int(np.argmax(prediction, axis=1)-1)
            #Writes predictions to a set directory for ease of view
            with open("/xxx/flags.txt", "a") as myfile:
                #Generic sentence for output both the filename and the TOP PREDICTION (can be adjusted for other predictions)
                myfile.write("A flag was found in photo: " + filename + ", It is most likely to from the Nation: " + countries[topCountry] +", or ," + countries[secondCountry] +"\n" )

def build_flag_identifier():
    x_train, x_test, y_train, y_test = build_data(datas)
    train_model(x_train, x_test, y_train, y_test)def main():
    build_flag_identifier()
    flag_identify({{DIR}})if __name__ == "__main__":
    main()
